02. 스위치 (PoE) > ⑤ 24포트 > + 4 SFP > HP [JG236A] 5120-24G-PoE+ EI 스위치, 10/100/1000 24포트, 4콤보 SFP, POE+ 지원 POE 370Watt

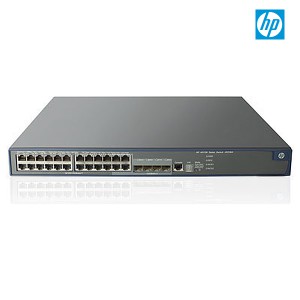

HP [JG236A] 5120-24G-PoE+ EI 스위치, 10/100/1000 24포트, 4콤보 SFP, POE+ 지원 POE 370Watt

판매가격 : 가격 문의

수량			EA

개요

HP A5120 EI 스위치 시리즈는 정적 계층 3 라우팅, 다각적인 서비스 및 IPv6 전달을 지원하고 최대 4개 10-기가비트 이더넷(10GbE) 확장 인터페이스를 제공하는 기가비트 이더넷 스위치입니다. 고유한 IRF(Intelligent Resilient Framework) 기술은 하나의 논리적 장치에서 여러 스위치를 관리함으로써 가상 패브릭을 생성하고, 이로써 복잡한 운영을 단순화하면서 네트워크 탄성, 성능 및 가용성을 높입니다. 이 스위치들은 기가비트 이더넷 액세스를 제공하고 네트워크 에지에서 사용할 수 있거나 또는 데이터 센터에서 서버 클러스터를 연결하는 데 사용할 수 있습니다. 높은 확장성은 2개의 확장 슬롯으로 투자를 보호하고, 각각 2-포트 10 GbE 확장 모듈을 지원할 수 있습니다. 높은 가용성, 단순화된 관리 및 종합적 보안 제어 정책은 이 시리즈를 구별하는 주요 특징들입니다.

기능

•	브로드캐스트 제어: 네트워크에서 불필요한 브로드캐스트 트래픽을 제거해 브로드캐스트 트래픽을 제한함

•	고급 분류자 기반 QoS: 계층 2, 3 및 4 정보를 기반으로 여러 일치 기준을 사용하여 트래픽 분류; 우선권 레벨 및 속도 제한 설정 같은 QoS 정책을 포트, VLAN 또는 전체 스위치에서 일부 트래픽에 적용

•	강력한 QoS 기능: 다음과 같은 정체 조치 지원: SP(Strict priority) 대기열, WRR(Weighted Round Robin) 및 SP+WRR

•	트래픽 정책 설정: CAR(Committed Access Rate) 및 회선 속도 지원

•	친숙한 포트 이름: 포트에 설명이 포함된 이름 지정 가능

•	원격 구성 및 관리: 안전한 웹 서버 또는 CLI(명령줄 인터페이스)를 통해 사용 가능

•	관리자 및 운영자 권한 레벨: CLI 및 웹 브라우저 관리 인터페이스에서 읽기 전용(운영자) 및 읽기-쓰기(관리자) 액세스 가능

•	명령 권한 부여: HWTACACS를 활용하여 CLI 명령줄의 사용자 정의 목록을 개별 네트워크 관리자의 로그인으로 링크; 또는 감사 추적 제공

•	안전한 웹 GUI: HTTPS를 통한 모듈 구성에 안전하고 사용하기 쉬운 그래픽 인터페이스 제공

•	자동 MDIX: 모든 10/100/1000 포트에서 직선 또는 교차 케이블 자동 조정

•	흐름 제어: 표준 IEEE 802.3x를 사용하여 배압을 제공하여 다량 트래픽 상황에서 정체 감소

•	점보 패킷 지원: 대형 데이터 전송 성능을 향상하기 위해 최대 9216바이트 프레임 크기 지원

•	고밀도 연결: 계층 2/계층 3 스위치에서 최대 48개의 고정 10/100/1000Base-T 포트를 제공

•	옵션 10 기가비트 이더넷 포트: 업링크 또는 높은 대역폭 서버 연결용 10 기가비트 이더넷 연결 추가 가능; XFP, SFP+ 또는 CX4 로컬 연결을 유연하게 지원

•	블로킹되지 않는 아키텍처: 최대 192Gbps 비블로킹 전환 패브릭은 최대 143 million pps 처리량으로 회선 속도 전환을 제공

•	하드웨어 기반 회선 속도 액세스 제어 목록(ACL): 기능이 풍부한 ACL 구현(TCAM 기반)은 네트워크 성능에 영향을 주지 않고 높은 수준의 보안 및 간편한 관리를 보장

•	별도 데이터 및 제어 경로: 서비스와 분리하여 제어를 유지하고 서비스 처리를 분리 유지; 보안 및 성능 개선

•	외부 이중 전원 공급장치: 높은 신뢰성

•	스마트 링크: 링크 간 50ms 장애 조치 가능

•	스패닝 트리/MSTP, RSTP: 네트워크 루프를 방지하는 동안 이중 링크 제공

•	신속한 링 보호 프로토콜(RRPP): 표준 이더넷 기술을 사용하여 고성능 링에 여러 스위치를 연결; 50ms 미만에서 링 주변의 트래픽 경로를 조정하여 트래픽 및 애플리케이션에 대한 영향 감소

•	16K MAC 주소 테이블: 많은 계층 2 장치에 액세스 제공

•	VLAN 지원 및 태깅: IEEE 802.1Q 지원, 4094 동시 VLAN ID 포함

•	GARP VLAN 등록 프로토콜(GVRP): VLAN의 자동 학습 및 동적 지정 가능

•	IEEE 802.1ad QinQ 및 Selective QinQ: 계층 구조를 제공함으로써 이더넷 네트워크의 확장성 증대; 고속 캠퍼스 또는 대도시 네트워크에서 다중 LAN 연결

•	10 GbE 포트 집계: 포트 그룹화가 원격 장치로 전체 데이터 처리량을 높일 수 있음

•	주소 결정 프로토콜(ARP): 동일한 서브넷에 위치한 다른 IP 호스트의 MAC 주소 결정; 정적 ARP 지원; 무상(gratuitous) ARP로 IP 주소 중복 감지 허용; 프록시 ARP로 서브넷이 레이어 2 네트워크로 분리된 경우나 서브넷 간 일반 ARP 작업 허용

•	동적 호스트 구성 프로토콜(DHCP): 대규모 IP 네트워크 관리를 단순화; 클라이언트 지원; DHCP 릴레이는 서브넷 전반에서 DHCP 작동 가능

•	루프백 인터페이스 주소: 항상 접근 가능한 주소를 정의하여 진단 기능을 개선

•	사용자 데이터그램 프로토콜(UDP) 헬퍼 기능: UDP 브로드캐스트를 사용하여 라우터 인터페이스를 통해 특정 IP 유니캐스트 또는 서브넷 브로드캐스트 주소 지정이 가능하며 DHCP와 같은 UDP 서비스에 대한 서버 스푸핑 방지

•	경로 맵: 경로 조정 중 제어 추가 제공; 경로 메트릭 필터링 및 변경 가능

참고: 가격은 예시일 뿐이며 옵션, 액세서리, 소모품은 제외입니다. 최선을 다했음에도 불구하고, 일부 아이템에 법의 허용 범위 내의 사양, 가격, 활자 및/또는 사진 오류가 있을 수 있습니다. HP는 이러한 오류에 대해 책임을 지지 않습니다.

기술 사양
포트	JE070A: 24개의 RJ-45 자동 감지 10/100/1000 PoE 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T, IEEE 802.3af PoE), 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 4개의 듀얼 퍼스낼리티 포트, PoE 자동 감지 10/100/1000Base-T 또는 SPF, 포트 확장 모듈 슬롯 2개, 1개의 RJ-45 직렬 콘솔 포트 JG236A: 24개의 RJ-45 자동 감지 10/100/1000 PoE+ 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 4개의 듀얼 퍼스낼리티 포트, PoE 자동 감지 10/100/1000Base-T 또는 SPF, 포트 확장 모듈 슬롯 2개, 1개의 RJ-45 직렬 콘솔 포트 JE066A: 24개의 RJ-45 자동 감지 10/100/1000 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 듀얼 퍼스낼리티 포트 4개, 자동 감지 10/100/1000Base-T 또는 SFP, 1개의 RJ-45 직렬 콘솔 포트 JE068A: 24개의 RJ-45 자동 감지 10/100/1000 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 듀얼 퍼스낼리티 포트 4개, 자동 감지 10/100/1000Base-T 또는 SFP, 포트 확장 모듈 슬롯 2개, 1개의 RJ-45 직렬 콘솔 포트 JE071A: 48개의 RJ-45 자동 감지 10/100/1000 PoE 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T, IEEE 802.3af PoE), 미디어 형식: 자동 MDIX, 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 4개의 듀얼 퍼스낼리티 포트, PoE 자동 감지 10/100/1000Base-T 또는 SFP, 포트 확장 모듈 슬롯 2개, RJ-45 직렬 콘솔 포트 1개, 최대 48개의 자동 감지 10/100/1000 포트 지원 JG237A: 48개의 RJ-45 자동 감지 10/100/1000 PoE+ 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 미디어 형식: 자동 MDIX, 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 4개의 듀얼 퍼스낼리티 포트, PoE 자동 감지 10/100/1000Base-T 또는 SFP, 포트 확장 모듈 슬롯 2개, RJ-45 직렬 콘솔 포트 1개, 최대 48개의 자동 감지 10/100/1000 포트 지원 JE067A: 48개의 RJ-45 자동 감지 10/100/1000 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 미디어 형식: 자동 MDIX, 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 듀얼 퍼스낼리티 포트 4개, 자동 감지 10/100/1000Base-T 또는 SFP, RJ-45 직렬 콘솔 포트 1개, 최대 48개의 자동 감지 10/100/1000 포트 지원 JE069A: 48개의 RJ-45 자동 감지 10/100/1000 포트(IEEE 802.3 형식 10BASE-T, IEEE 802.3u 형식 100BASE-TX, IEEE 802.3ab 형식 1000BASE-T), 미디어 형식: 자동 MDIX, 이중: 10BASE-T/100BASE-TX: 반이중 또는 전이중, 1000BASE-T: 전이중만 해당, 듀얼 퍼스낼리티 포트 4개, 자동 감지 10/100/1000Base-T 또는 SFP, 포트 확장 모듈 슬롯 2개, RJ-45 직렬 콘솔 포트 1개, 최대 48개의 자동 감지 10/100/1000 포트 지원
장착	EIA 표준 48.26cm(19인치) Telco 랙 또는 장비 캐비닛에 장착(하드웨어 포함)
메모리 및 프로세서	JE068A / JE066A / JE070A / JG236A: 128MB SDRAM, 패킷 버퍼 크기: 2MB, 16MB 플래시 JE071A / JE069A / JG237A: 128MB SDRAM, 패킷 버퍼 크기: 4MB, 16MB 플래시 JE067A: 128MB SRAM, 패킷 버퍼 크기: 4MB, 16MB 플래시
대기 시간	JE067A / JE066A: 1000Mb 지연: 3.2μs 미만 JE068A / JE071A / JE069A / JE070A / JG236A / JG237A: 1000Mb 지연: 3.2μs 미만; 10Gbps 지연: 2.6μs 미만
처리량	JE071A / JE069A / JG237A: 1억4290만pps JE068A / JE070A / JG236A: 1억720만pps JE066A: 3570만pps JE067A: 7140만pps
라우팅/스위칭 용량	JE068A / JE070A / JG236A: 144Gbps JE071A / JE069A / JG237A: 192Gbps JE066A: 48Gbps JE067A: 96Gbps
라우팅 테이블 크기	엔트리 32개
관리 특징	IMC - 인텔리전트 관리 센터; CLI(명령줄 인터페이스); 웹 브라우저; SNMP 관리자

전력 및 가동 요구사항
소비 전력	JE067A: 110W(최대) JE068A: 최대 106W JE069A: 최대 145W JE070A / JG236A: 최대 495W JE066A: 최대 62W JE071A / JG237A: 최대 920W
입력 전압	JE067A / JE068A / JE071A / JE069A / JE066A / JE070A: 100~240VAC JG236A / JG237A: 100-240VAC
입력 주파수	50/60Hz
규정 준수 정보/안전	UL 60950-1; EN 60825-1 레이저 제품 안전-Part 1; EN 60825-2 레이저 제품 안전-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST, EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS 준수
전자기파 호환성	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC(CFR 47, Part 15) Class A
작동 온도	0~45°C
작동 습도 범위	10~90%(비응결)
열 손실	JE066A: 212BTU/시간(223.66kJ/시간) JE068A: 362BTU/시간(381.91kJ/시간) JE067A: 375BTU/시간(395.63kJ/시간) JE070A / JG236A: 425BTU/시간(448.38kJ/시간) JE069A: 495BTU/시간(522.23kJ/시간) JE071A / JG237A: 614BTU/시간(647.77kJ/시간)

크기 및 무게
크기(가로x세로x높이)	JE069A / JE066A: 30x44x4.36cm JE067A / JE068A: 30x44x43.6cm JE071A / JE070A / JG236A / JG237A: 42x44x43.6cm
무게	JE068A / JE066A: 4.5kg JE067A / JE069A: 5kg JE071A / JG237A: 7.5kg JE070A / JG236A: 7kg

HP 5120-24G-PoE+ EI Switch with 2 Interface Slots (JG236A)
Ports	24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
	4 dual-personality ports; PoE auto-sensing 10/100/1000Base-T or SPF
	2 port expansion module slots
	1 RJ-45 serial console port
Physical characteristics	Dimensions	16.54(d) x 17.32(w) x 17.17(h) in. (42 x 44 x 43.6 cm) (1U height)
Physical characteristics	Weight	15.43 lb. (7 kg)
Memory and processor	128 MB SDRAM, 16 MB flash; packet buffer size: 2 MB
Mounting	Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Performance	1000 Mb Latency	< 3.2 µs
	10 Gbps Latency	< 2.6 µs
	Throughput	107.2 million pps
	Routing/Switching capacity	144 Gbps
	Routing table size	32 entries
Environment	Operating temperature	32°F to 113°F (0°C to 45°C)
	Operating relative humidity	10% to 90%, noncondensing
	Nonoperating/Storage temperature	-40°F to 158°F (-40°C to 70°C)
	Nonoperating/Storage relative humidity	5% to 95%, noncondensing
Electrical characteristics	Maximum heat dissipation	425 BTU/hr (448.38 kJ/hr)
	Voltage	100-240 VAC
	DC voltage	-52 to -55 VDC
	Idle power	55 W
	Maximum power rating	495 W
	PoE power	370 W
	Frequency	50/60 Hz
	Notes	Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply; it is dependent on the type and quantity of power supplies and may be supplemented with the use of an External Power Supply (EPS).
Safety	UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions	FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A
Management	IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Services	3-year, 4-hour onsite, 13x5 coverage for hardware (UV858E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UV861E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UV864E) 3-year, 24x7 SW phone support, software updates (UV867E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UV859E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UV862E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV865E) 4-year, 24x7 SW phone support, software updates (UV868E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UV860E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UV863E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UV866E) 5-year, 24x7 SW phone support, software updates (UV869E) 3 Yr 6 hr Call-to-Repair Onsite (UW963E) 4 Yr 6 hr Call-to-Repair Onsite (UW964E) 5 Yr 6 hr Call-to-Repair Onsite (UW965E) Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Standards and protocols
(applies to all products in series)

Device management
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 2573 (SNMPv3 Applications)
RFC 2819 (RMON groups Alarm, Event, History
and Statistics only)
RFC 3416 (SNMP Protocol Operations v2)
HTML and telnet management
Multiple Configuration Files
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
Web UI

General protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.1X PAE
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 951 BOOTP
RFC 1213 Management Information Base for
Network Management of TCP/IP-based internets
RFC 1305 NTPv3
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1812 IPv4 Routing
RFC 1866 Hypertext Markup Language - 2.0
RFC 2131 DHCP
RFC 2236 IGMP Snooping
RFC 2616 HTTP Compatibility v1.1
RFC 2665 Definitions of Managed Objects for the
Ethernet-like Interface Types
RFC 2668 Definitions of Managed Objects for IEEE
802.3 Medium Attachment Units (MAUs)
RFC 2865 Remote Authentication Dial In User
Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3414 User-based Security Model (USM) for
version 3 of the Simple Network Management
Protocol (SNMPv3)
RFC 3415 View-based Access Control Model
(VACM) for the Simple Network Management
Protocol (SNMP)

RFC 3418 Management Information Base (MIB) for
the Simple Network Management Protocol (SNMP)
RFC 3576 Ext to RADIUS (CoA only)
RFC 4213 Basic IPv6 Transition Mechanisms
RFC 4675 RADIUS VLAN & Priority
802.1r - GARP Proprietary Attribute Registration
Protocol (GPRP)

IPv6
RFC 2461 IPv6 Neighbor Discovery
RFC 2463 ICMPv6
RFC 3162 RADIUS and IPv6
RFC 3306 Unicast-Prefix-based IPv6 Multicast
Addresses
RFC 3315 DHCPv6 (client and relay)

MIBs
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1757 Remote Network Monitoring MIB
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interface MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Notification MIB
RFC 2573 SNMP-Target MIB
RFC 2574 SNMP USM MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3621 Power Ethernet MIB

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3

Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv2 Secure Shell

Accessories

HP 5120 EI Switch Series accessories	Modules
	HP 5500/A5120-EI 2-port 10-GbE XFP Module	JD359B
	HP 5500/A5120-EI 2-port 10-GbE CX4 Module	JD360B
	HP 5500/A5120-EI 1-port 10-GbE XFP Module	JD361B
	HP 5500/A5120-EI 2-port 10-GbE SFP+ Module	JD368B
	HP 5500/A5120-EI 2-Port GbE SFP Module	JD367A
	Transceivers
	HP X124 1G SFP LC LH40 1310nm Transceiver	JD061A
	HP X120 1G SFP LC LH40 1550nm Transceiver	JD062A
	HP X125 1G SFP LC LH70 Transceiver	JD063B
	HP X130 SFP+ LC SR Transceiver	JD092B
	HP X130 SFP+ LC LRM Transceiver	JD093B
	HP X130 SFP+ LC LR Transceiver	JD094B
	HP X240 SFP+ SFP+ 0.65 m Direct Attach Cable	JD095B
	HP X240 SFP+ SFP+ 1.2 m Direct Attach Cable	JD096B
	HP X240 SFP+ SFP+ 3 m Direct Attach Cable	JD097B
	HP X130 10G XFP LC LR Transceiver	JD108B
	HP X130 10G XFP LC SR Transceiver	JD117B
	HP X120 1G SFP LC SX Transceiver	JD118B
	HP X120 1G SFP LC LX Transceiver	JD119B
	HP X135 10G XFP LC ER Transceiver	JD121A
	HP X110 100M SFP LC FX Dual Mode Transceiver	JD497A
	HP X110 100M SFP LC LX Dual Mode Transceiver	JD498A
	HP X120 1G SFP LC BX 10-U Transceiver	JD098B
	HP X120 1G SFP LC BX 10-D Transceiver	JD099B
	HP X125 1G SFP RJ45 T Transceiver	JD089B
	Cables
	HP X230 Local Connect 100 cm CX4 Cable	JD364B
	HP X230 Local Connect CX4 300 cm Cable	JD365A
	HP 0.5 m Multimode OM3 LC/LC Optical Cable	AJ833A
	HP 1 m Multimode OM3 LC/LC Optical Cable	AJ834A
	HP 2 m Multimode OM3 LC/LC Optical Cable	AJ835A
	HP 5 m Multimode OM3 LC/LC Optical Cable	AJ836A
	HP 15 m Multimode OM3 LC/LC Optical Cable	AJ837A
	HP 30 m Multimode OM3 LC/LC Optical Cable	AJ838A
	HP 50 m Multimode OM3 LC/LC Optical Cable	AJ839A
	NEW HP 0.5 m PremierFlex OM3+ LC/LC Optical Cable	BK837A
	NEW HP 1 m PremierFlex OM3+ LC/LC Optical Cable	BK838A
	NEW HP 2 m PremierFlex OM3+ LC/LC Optical Cable	BK839A
	NEW HP 5 m PremierFlex OM3+ LC/LC Optical Cable	BK840A
	NEW HP 15 m PremierFlex OM3+ LC/LC Optical Cable	BK841A
	NEW HP 30 m PremierFlex OM3+ LC/LC Optical Cable	BK842A
	NEW HP 50 m PremierFlex OM3+ LC/LC Optical Cable	BK843A
	HP X230 Local Connect 50cm CX4 Cable	JD363B
	Power Supply
	HP RPS800 Redundant Power System	JD183A
	HP RPS1600 Redundant Power System	JG136A
	HP RPS1600 1600W AC Power Supply	JG137A
	Power cords
	HP X290 JD5 JD5 2m RPS1600 Cable	JD187A
	HP X290 H2.7 H2.7 1m RPS800 Cable with ferrite core	JD190A

Accessory Product Details

NOTE: Details are not available for all accessories. The following specifications were available at the time of publication.

HP 5500 2-port 10GbE XFP Module (JD359B)	Ports	2 XFP 10-GbE ports; Duplex: full only
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 5500 1-port 10GbE XFP Module (JD361B)	Ports	1 XFP 10-GbE port; Duplex: full only
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 5500/4800 2-port GbE SFP Module (JD367A)	Ports	2 SFP 1000 Mbps ports
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X125 1G SFP LC LH40 1310nm Transceiver (JD061A) A small form-factor pluggable SFP Gigabit LH40 transceiver that provides a full duplex Gigabit solution up to 40km on a single-mode fiber.	Ports	1 LC 1000Base-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1310 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: 40km distance
		Fiber type	Single Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC LH40 1550nm Transceiver (JD062A) A small form-factor pluggable (SFP) Gigabit LH40 transceiver that provides a full-duplex Gigabit solution up to 40 km on a single mode fiber.	Ports	1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1550 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: 40km distance
		Fiber type	Single Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X125 1G SFP LC LH70 Transceiver (JD063B) A small form-factor pluggable (SFP) Gigabit LH70 transceiver that provides a full-duplex Gigabit solution up to 70km on a single-mode fiber.	Ports	1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)
	Connectivity	Connector type	LC
		Wavelength	1550 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: Single-mode fiber optic, complying with ITU-T G.652; Maximum distance: • 70km
		Fiber type	Single Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC SX Transceiver (JD118B) A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.	Ports	1 LC 1000BASE-SX port
	Connectivity	Connector type	LC
		Wavelength	850 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Maximum distance: • FDDI Grade distance = 220m • OM1 = 275m • OM2 = 500m • OM3 = Not Specified by standard
		Cable length	up to 550m
		Fiber type	Multi Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC LX Transceiver (JD119B) A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF	Ports	1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)
	Connectivity	Connector type	LC
		Wavelength	1300 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: Either single mode or multimode; Maximum distance: • 550m for Multimode • 10km for Singlemode
		Fiber type	Both
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X110 100M SFP LC FX Dual Mode Transceiver (JD497A) A small form-factor pluggable (SFP) 100 MB/s Dual mode transceiver that provides a full duplex 100Mb/s soolution up to 2km on a multi mode fiber.	Ports	1 LC 100 Mbps port
	Connectivity	Connector type	LC
		Wavelength	1310 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable length	2km
		Fiber type	Multi Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X110 100M SFP LC LX10 Transceiver (JD498A) A small form-factor pluggable (SFP) 100Mb/s transceiver that provides a full duplex 100Mb/s solution for up to 10km on a single mode cable.	Ports	1 LC 100 Mbps port
	Connectivity	Connector type	LC
		Wavelength	1310 nm
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable length	10km
		Fiber type	Single Mode
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC BX 10-U Transceiver (JD098B) A small form-factor pluggable (SFP) Gigabit LX-BX10-U transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.	Ports	1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex: full only
	Connectivity	Connector type	LC
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Maximum distance: • 10km
		Fiber type	Single Mode
	Notes	TX 1310nm RX 1490nm
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC BX 10-D Transceiver (JD099B) A small form-factor pluggable (SFP) Gigabit LX-BX10-D transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.	Ports	1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex: full only
	Connectivity	Connector type	LC
	Physical characteristics	Dimensions	2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)
		Full configuration weight	0.04 lb. (0.02 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Maximum distance: • Up to 10km
		Fiber type	Single Mode
	Notes	TX 1490nm RX 1310nm
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X125 1G SFP RJ45 T Transceiver (JD089B) A small form factor pluggable (SFP) Gigabit 1000Base-T transceiver that provides a full duplex Gigabit solution up to 100m on a Cat-5+ cable.	Ports	1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)
	Connectivity	Connector type	RJ-45
	Physical characteristics	Dimensions	2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)
		Full configuration weight	0.07 lb. (0.03 kg)
	Electrical characteristics	Power consumption typical	0.8 W
		Power consumption maximum	1.0 W
	Cabling	Cable type: 1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4-pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T; Maximum distance: • 100m
	Services	Refer to the HP website at: www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 0.5 m Multimode OM3 LC/LC Optical Cable (AJ833A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 1 m Multimode OM3 LC/LC Optical Cable (AJ834A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 2 m Multimode OM3 LC/LC Optical Cable (AJ835A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m; Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 5 m Multimode OM3 LC/LC Optical Cable (AJ836A)	Cabling	Cable type: 50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m; Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: This specification defines the detail requirements for a tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 15 m Multimode OM3 LC/LC Optical Cable (AJ837A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m; Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 30 m Multimode OM3 LC/LC Optical Cable (AJ838A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m; Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 50 m Multimode OM3 LC/LC Optical Cable (AJ839A)	Cabling	Cable type: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m; Maximum distance: 10Gbps Transfer Rate (Ethernet): 300m
	Notes	Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
	Services	Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 0.5 m PremierFlex OM3+ LC/LC Optical Cable (BK837A)

Notes
